Zeta 5 Pedestal

Zeta 5 Pedestal

Model: ZETA5P + ZETA5PW
Fuel Type: Multi-Fuels – Wood burning & smokeless fuels
Heat Output: 4 – 6kW Variable
Efficiency: Smokeless Fuel @ 4.1kW – 77.7%
Wood @ 4.9kW – 76.4%

Info

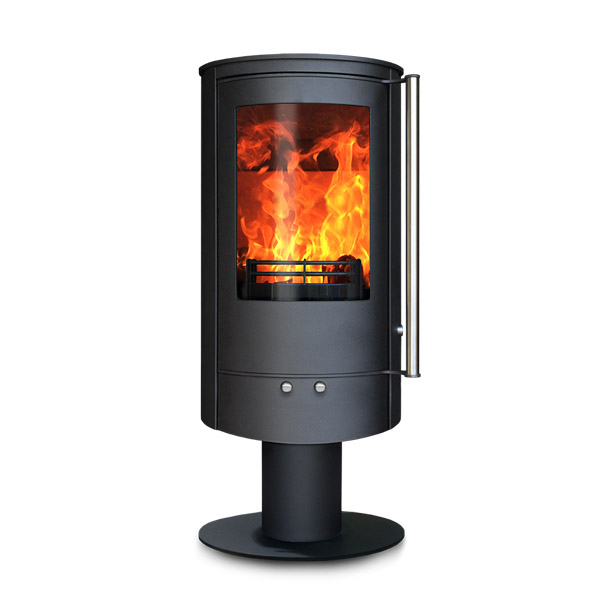

NEW MODEL – The contemporary and stylish Scandinavian design style of the Zeta 5P will enhance any home. The Zeta 5P is an elegant round steel multi-fuelled stove. The large panoramic single curved door with integrated polished handle, the fire is visible from most angles within any room.

The Zeta 5P is British manufactured out of the finest materials to the very highest standards and confirms to BS EN 13240 and is “Defra Pending” for use in smokeless zones. With a nominal heat output of 4.9kW on wood and 4.1kW on smokeless fuels this stove can be installed without the need of any additional ventilation. It has a maximum heat output of 6.0kW and provides both radiant and convected heat.

The Zeta 5P has a fully controllable Eco-Cleanburn air management system with primary, secondary and tertiary air for a superior burn. This system provides the stove with an excellent air wash system which keeps the glass clean and also a tertiary burn (wood only) for super clean burning thereby protecting the environment for future generations.

NEW FEATURES
• Soft Closing Door
• Larger Curved Glass Window
• Rotating Riddle Plate
• Removable Top Plate

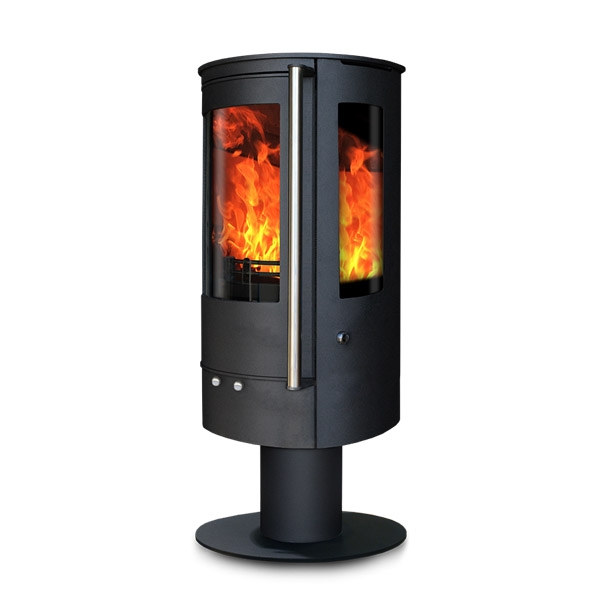

• Side Window Option

• British Made contemporary Scandinavian design style multi fuel stove
• Panoramic single door with large viewing area for maximum view of the fire
• Multifuel Stove – Nominal heat output Wood 4.9kW and Smokeless Fuel 4.1kW
• Maximum heat output of 6.0kW
• 125mm (5 inch) top flue outlet
• Pre-heated air wash system for cleaner glass
• Eco-Cleanburn air management system for greater efficiency
• Removable ashpan
• Can be installed on a 12mm glass hearth without the need of additional hearth construction
• External air inlet for use in low energy homes
• Pre stressed steel body for superior strength
• 77.7% efficiency (smokeless fuel) 76.4% efficiency (wood)
• 10 year warranty

Specifications

Model: ZETA5P + ZETA5PW
Height: 1050mm
Width: 470mm
Depth: 470mm
Weight: 140kg
Material: Plate Steel, Ceramic Glass & Vermiculite
Heat Output: 4 – 6kW Variable
Flue Outlet: Top Exit – 125mm diameter (To suit 5″ flue)
Fuel Type: Multi-Fuels – Wood burning & smokeless fuels
Log Length: 250mm
Log Store: No
Efficiency: Smokeless Fuel @ 4.1kW – 77.7%
Wood @ 4.9kW – 76.4%

Documents


New Brochure Coming Soon
